HAMILTON-C1 Neo

Home → Our Products → HAMILTON-C1 Neo

Authorized Seller in North India

HAMILTON-C1 Neo Ventilator
HAMILTON-C1 Neo thumbnail 1 HAMILTON-C1 Neo thumbnail 2 HAMILTON-C1 Neo thumbnail 3 HAMILTON-C1 Neo thumbnail 4

HAMILTON-C1 Neo: Comprehensive Care for Newborns

The HAMILTON-C1 Neo is a compact and versatile ventilator specifically designed to provide comprehensive care for neonatal and pediatric patients. It combines invasive and non-invasive ventilation modes with options for nCPAP and high flow oxygen therapy in a single, integrated device.

Its small footprint and integrated high-performance turbine ensure exceptional mobility, allowing it to be operated independently of a compressed air supply. This makes it an ideal companion for your smallest patients in the NICU, emergency ward, delivery room, or during intrahospital transport.

Download Brochure

Key Features

Dedicated Neonatal & Pediatric Care

Combines invasive and non-invasive modes tailored for small patients.

Compact & Mobile

Small footprint and integrated turbine for optimal mobility.

Low Tidal Volumes

Provides tidal volumes as low as 2 ml for lung-protective ventilation.

Adaptive Synchronization

Ensures optimal patient-ventilator synchrony even with uncuffed tubes.

Efficient Leak Compensation

Automatically adjusts gas delivery to compensate for leaks in real-time.

Integrated High Flow O2 Therapy

Offers comfortable high-flow oxygen delivery, reducing reintubation rates.

Designed for Versatility

Versatile Setup Options C1 Neo

Comprehensive Care in One Compact Device

The HAMILTON-C1 Neo combines invasive and non-invasive ventilation modes with nCPAP and high flow oxygen therapy options into a single, highly mobile device. Its integrated high-performance turbine ensures independence from a compressed air supply, making it an ideal solution for any neonatal or pediatric care setting, including intensive care units, emergency wards, and during intrahospital transport.

Download Brochure

Know One, Know Them All: A Universal User Interface

Universal User Interface C1 Neo

Streamlined Operation Across All Hamilton Medical Ventilators

The HAMILTON-C1 Neo benefits from the universal user interface found across all Hamilton Medical ventilators. This consistency simplifies operation, reduces the learning curve for clinicians, and minimizes errors, ensuring efficient and safe patient care for even the tiniest patients.

Our Ventilator Portfolio

Optimized for Patient & Clinician

For Your Patients: Gentle & Effective Care

  • Lung Protective Ventilation: Provides tidal volumes as low as 2 ml for effective and safe ventilation tailored for neonates.
  • Adaptive Synchronization: Ensures optimal patient-ventilator synchrony, even with uncuffed tubes, by precisely measuring and adjusting for leaks.
  • Automatic nCPAP Adjustment: Simplifies nCPAP management by automatically adjusting flow based on patient condition and leakage, preventing unintended peak pressures.
  • Improved Oxygenation & Respiratory Mechanics: High flow oxygen therapy with active heated humidification improves pulmonary compliance and reduces metabolic cost.

For You, the Clinician: Streamlined Workflow & Support

  • Reduced Workload: Automated adjustments for nCPAP and leak compensation free up clinicians for other critical tasks.
  • Universal User Interface: Familiar operation across all Hamilton ventilators minimizes training and enhances efficiency.
  • On-Screen Troubleshooting: Provides instant guidance for alarms and operational issues, improving response time.
  • Comprehensive Learning Resources: Access to Hamilton Medical's online Academy for continuous education and product familiarity.

Technical Specifications

Patient Groups:

Neonatal, Pediatric (up to 30 kg)

Dimensions (W x D x H):

Ventilator: 290 x 200 x 275 mm

Weight:

Ventilator: Approx. 4.9 kg (10.8 lbs)

Display:

8.4-inch color TFT touchscreen

Battery Operating Time:

Typically 2-3 hours (internal battery)

Air Supply:

Integrated turbine; independent from compressed air

O2 connector:

DISS or NIST

Connectivity:

RS-232, USB, Ethernet, Nurse call

Loudness:

Typically 40 dB (A) in normal operation

Ventilation Modes and Therapies

State-of-the-art invasive ventilation modes

Comprehensive invasive ventilation options for neonatal patients.

Synchronized noninvasive ventilation

Synchronized NIV modes for gentle patient support.

Demand-flow nCPAP modes

Offers flexible and adaptive nCPAP therapy.

High flow oxygen therapy

Provides comfortable and effective high flow O2 delivery.

Leak compensation in every mode

Ensures accurate ventilation despite leaks from uncuffed tubes.

Advanced Monitoring

SpO2 measurement with OSI (oxygen saturation index)

Provides critical oxygen saturation data for neonatal patients.

CO2 measurement - volumetric capnography with low dead space

Accurate CO2 monitoring with minimal dead space for neonates.

Other Ventilation Features

Lung Protective Ventilation

Delivers tidal volumes as low as 2 ml for delicate neonatal lungs.

Adaptive synchronization, even with uncuffed tubes

Ensures precise synchronization despite leaks, optimizing breathing pattern.

Automatic nCPAP Adjustment & Efficient Leak Compensation

Automatically adjusts flow and compensates for leaks in nCPAP modes.

Free breathing in each ventilation phase

Biphasic nCPAP-PC mode allows free breathing at both pressure levels.

Improved ventilation and oxygenation with high flow

High flow oxygen therapy enhances pulmonary compliance and oxygen delivery.

For the Complete Solution: Fully Integrated Accessories

HAMILTON-H900 humidifier

HAMILTON-H900 Humidifier

Seamlessly integrates for optimal respiratory gas conditioning. ( Standard)

IntelliCuff cuff pressure controller

IntelliCuff Cuff Pressure Controller

Automatically maintains optimal cuff pressure to prevent leaks and injury. ( Standard)

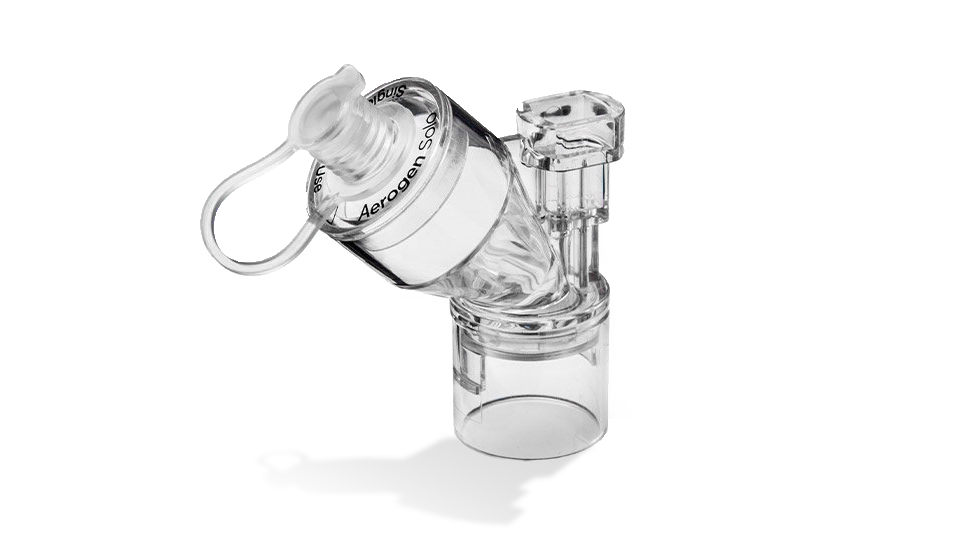

Pneumatic and Aerogen nebulizers

Pneumatic & Aerogen Nebulizers

Integrated pneumatic nebulizer ( Standard), Aerogen nebulizer ( Standard).

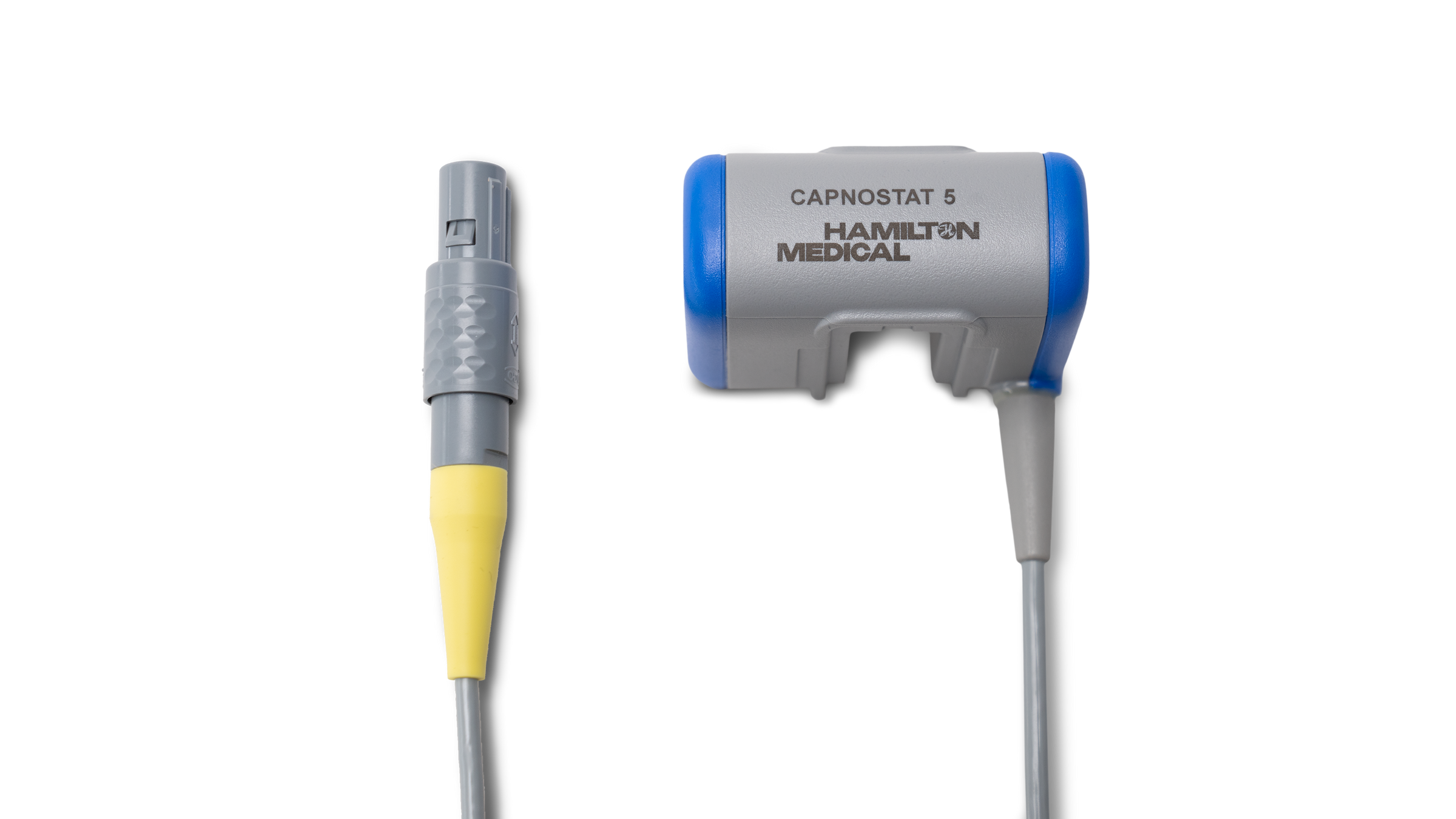

SpO2 and CO2 sensors

SpO2 and CO2 Sensors

Accurate and real-time patient monitoring for vital respiratory parameters. ( Standard)

Sedaconda ACD-S

Compatibility with Sedaconda ACD-S

Seamless integration with anesthetic delivery system. ( Standard)
