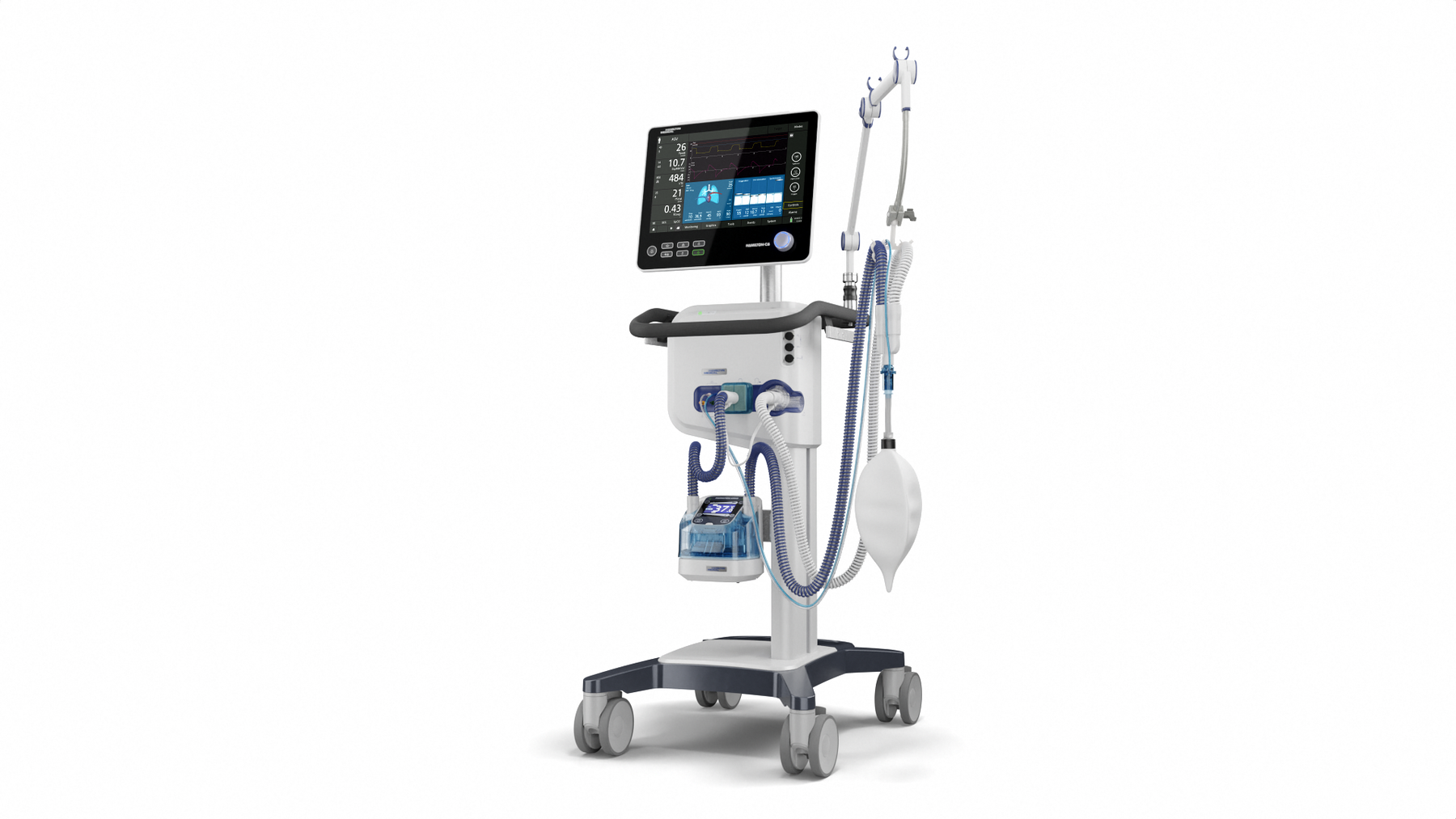

HAMILTON-C6: The Next Generation Intelligent ICU Ventilator

The HAMILTON-C6 is a cutting-edge ICU ventilator that combines modularity, ease of use, mobility, and advanced features to allow individualized patient ventilation therapy. It features the innovative **IntelliVent-ASV**, an advanced ventilation mode that automatically adjusts ventilation and oxygenation based on the patient's physiological needs, simplifying patient management and reducing clinician workload.

Equipped with a powerful, high-performance turbine, the HAMILTON-C6 operates independently from compressed air, ensuring maximum mobility within the hospital environment. Its compact design, intuitive 17-inch detachable touchscreen user interface, and comprehensive monitoring tools (including real-time lung mechanics and 72-hour trends) ensure superior patient safety and clinical efficiency.

Download Brochure

Key Features

IntelliVent-ASV

Automated and intelligent ventilation mode adjusting to patient needs, reducing manual interventions.

High-Performance Turbine

Ensures independence from compressed air and provides maximum mobility.

17-inch Detachable Touchscreen

Large, intuitive display with configurable screen setups and 72-hour trends.

Dynamic Lung View & Monitoring

Real-time visualization of lung mechanics and comprehensive patient data analysis.

Battery Powered Operation

Provides up to 3 hours of autonomy for seamless transport and power outages.

On-Screen Troubleshooting

Provides intuitive guidance to resolve alarms and operational issues directly on screen.

Integrated IntelliCuff®

Continuously measures and automatically maintains optimal cuff pressure for airway security.

Integrated Nebulizer

Synchronized pneumatic and optional Aerogen nebulizers for efficient drug delivery.

Volumetric Capnography

Provides essential data for assessing ventilation quality and metabolic activity (optional).

Designed for Versatility

Select the setup that fits your needs

The HAMILTON-C6 is designed to be as flexible as your clinical environment demands. Whether you need it on a trolley, attached to a pendant, or positioned on a shelf, its modular design ensures seamless integration into any ICU setup. This adaptability makes it an ideal solution for diverse clinical scenarios.

Transport Solutions

Know One, Know Them All: A Universal User Interface

Streamlined Operation Across All Hamilton Medical Ventilators

One of the most significant advantages of Hamilton Medical ventilators, including the HAMILTON-C6, is their universal user interface. This means that once you've learned to operate one Hamilton ventilator, you can confidently operate any other, regardless of its model or setting—be it in the ICU, MRI suite, or during transport. This consistency minimizes training time and reduces the risk of errors.

The intuitive "Ventilation Cockpit" integrates complex patient data into easily understandable visual representations, allowing clinicians to grasp crucial information at a glance and make informed decisions swiftly.

Our Ventilator Portfolio

Optimized for Patient & Clinician

For Your Patients: Comfort & Recovery

ASV® - Adaptive Support Ventilation®: Continuously adjusts respiratory rate, tidal volume, and inspiratory time breath by breath, adapting to the patient’s lung mechanics and effort, 24 hours a day.
Early Mobilization Support: With its high-performance turbine, battery, and compact size, the HAMILTON-C6 facilitates early patient mobilization, even allowing for first steps out of bed while on ventilation.
Whisper-Quiet Operation: At an average of just 35 dB, the HAMILTON-C6 is one of the quietest ICU ventilators, contributing to a more peaceful and healing environment for patients.

For You, the Clinician: Efficiency & Support

Less Knob-Turning, More Adaptation: Solutions like IntelliVent-ASV and IntelliSync+ automate complex adjustments, transforming clinicians from "knob-turners" to supervisors and reducing manual interventions.
On-Screen Troubleshooting: Instant alerts with suggested resolutions directly on the display help clinicians quickly address issues, improving workflow and patient safety.
Comprehensive Learning Paths: Access to an online Academy with easy-to-follow learning paths to familiarize staff with Hamilton Medical products and technologies.

Technical Specifications

Patient Groups:

Adult, Pediatric, Neonatal

Dimensions (H x W x D):

Monitor: 423 x 250 x 415 mm
Ventilation Unit: 360 x 250 x 394 mm
Trolley (incl.): 640 x 560 x 1400 mm

Weight:

Monitor without shelf mount: 7.8 kg (17.2 lb)
Monitor with shelf mount: 10 kg (22 lb)
Ventilation unit with shelf mount: 10.5 kg (23.2 lb)
Ventilation unit, monitor, and trolley: 46 kg (101 lb)

Display:

17-inch (431.8 mm) diagonal, 1920 x 1200 pixels

Detachable Monitor:

Standard

Battery Operating Time:

1.5 h with one battery, 3 h with two batteries

Hot-swappable Battery:

Not available

Air Supply:

Integrated turbine with lifetime warranty

O2 connector:

DISS (CGA 1240) or NIST

Connectivity:

Three COM ports, two USB ports, DVI, Nurse call

Loudness:

37 dB in normal operation

Ventilation Modes and Therapies

Volume controlled, flow controlled

Standard feature for precise volume delivery.

Volume targeted, adaptive pressure controlled

Ensures optimal tidal volume with adaptive pressure support.

Intelligent ventilation

ASV®, INTELLiVENT®-ASV® available as an option for enhanced automation.

Noninvasive ventilation

Standard mode for non-invasive respiratory support.

High flow

Optional high flow therapy for oxygen delivery.

Advanced Monitoring

Visualization of lung mechanics (Dynamic Lung)

Standard feature providing real-time graphical representation of lung function.

Visualization of patient’s ventilator dependence

Standard visual tool to assess weaning readiness.

Esophageal pressure measurement

Standard for precise pressure monitoring within the esophagus.

Capnography

Optional CO2 monitoring for ventilation quality assessment.

SpO2 monitoring

Optional pulse oximetry for blood oxygen saturation levels.

Other Ventilation Features

Recruitability assessment and lung recruitment (P/V Tool Pro)

Optional tool for assessing lung recruitability and optimizing recruitment strategy.

Patient-ventilator synchronization (IntelliSync+)

Optional feature for real-time detection of patient efforts to enhance synchrony.

CPR ventilation

Not available on this model.

Hamilton Connect Module

Not available on this model.

Hamilton Connect App

Not available on this model.

For the Complete Solution: Fully Integrated Accessories

HAMILTON-H900 Humidifier

Seamlessly integrates for optimal respiratory gas conditioning. ( Option)

IntelliCuff Cuff Pressure Controller

Automatically maintains optimal cuff pressure to prevent leaks and injury. ( Option)

Pneumatic & Aerogen Nebulizers

Integrated pneumatic nebulizer ( Standard), Aerogen nebulizer ( Option).

SpO2 and CO2 Sensors

Accurate and real-time patient monitoring for vital respiratory parameters. ( Option)

Compatibility with Sedaconda ACD-S

Seamless integration with anesthetic delivery system. ( Standard)
